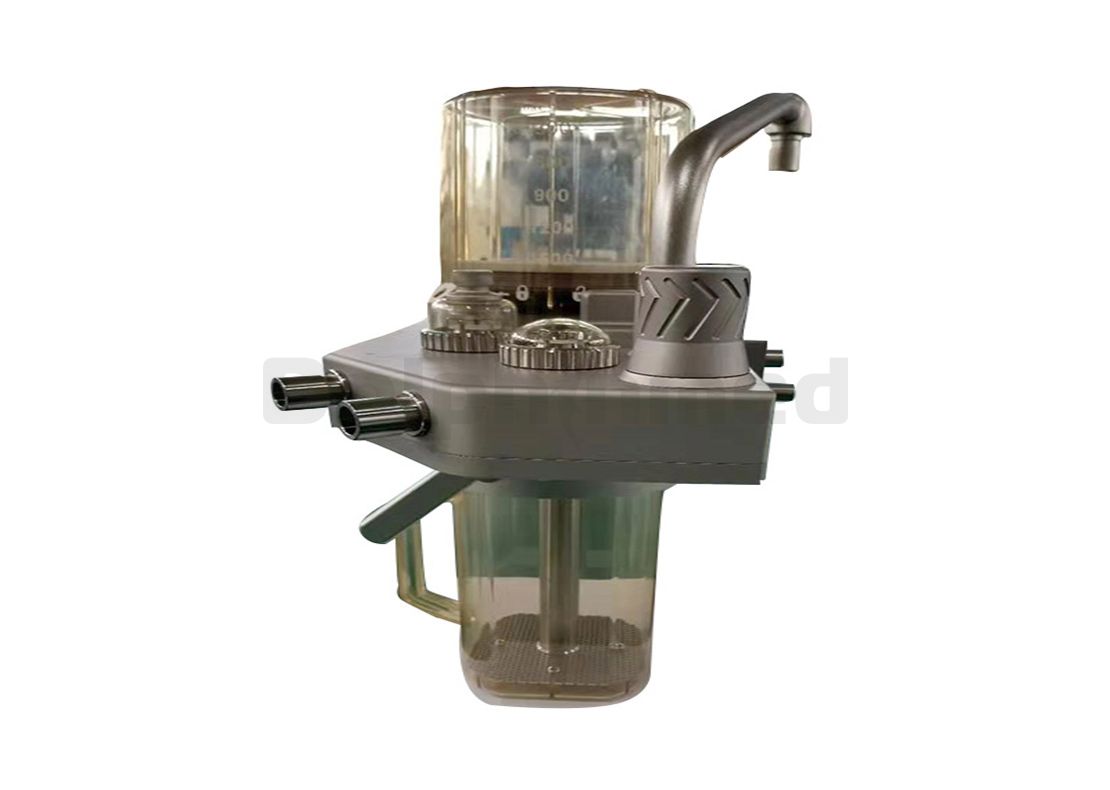

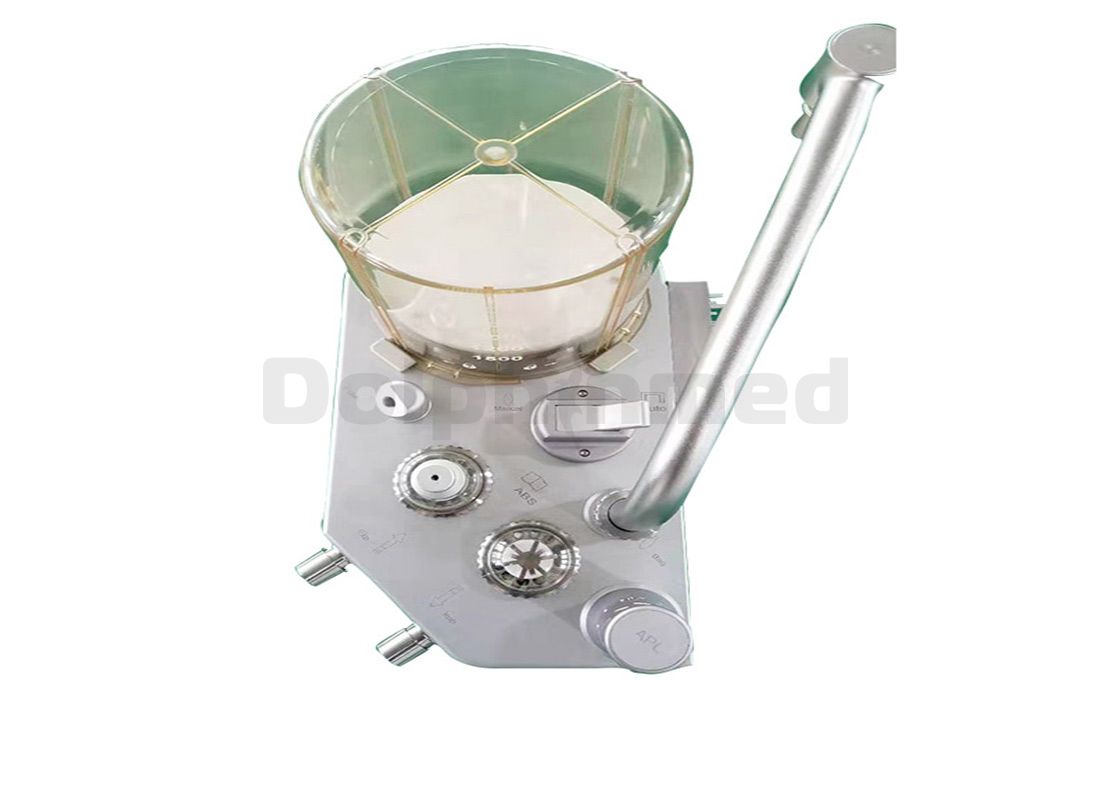

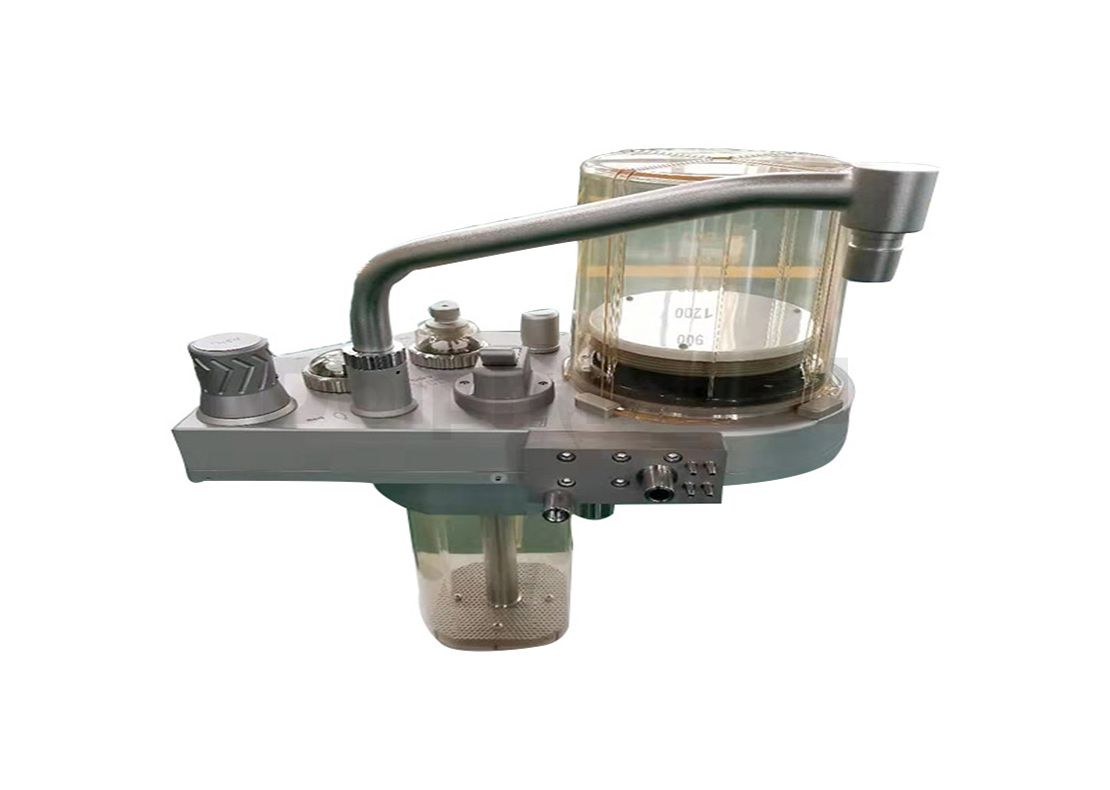

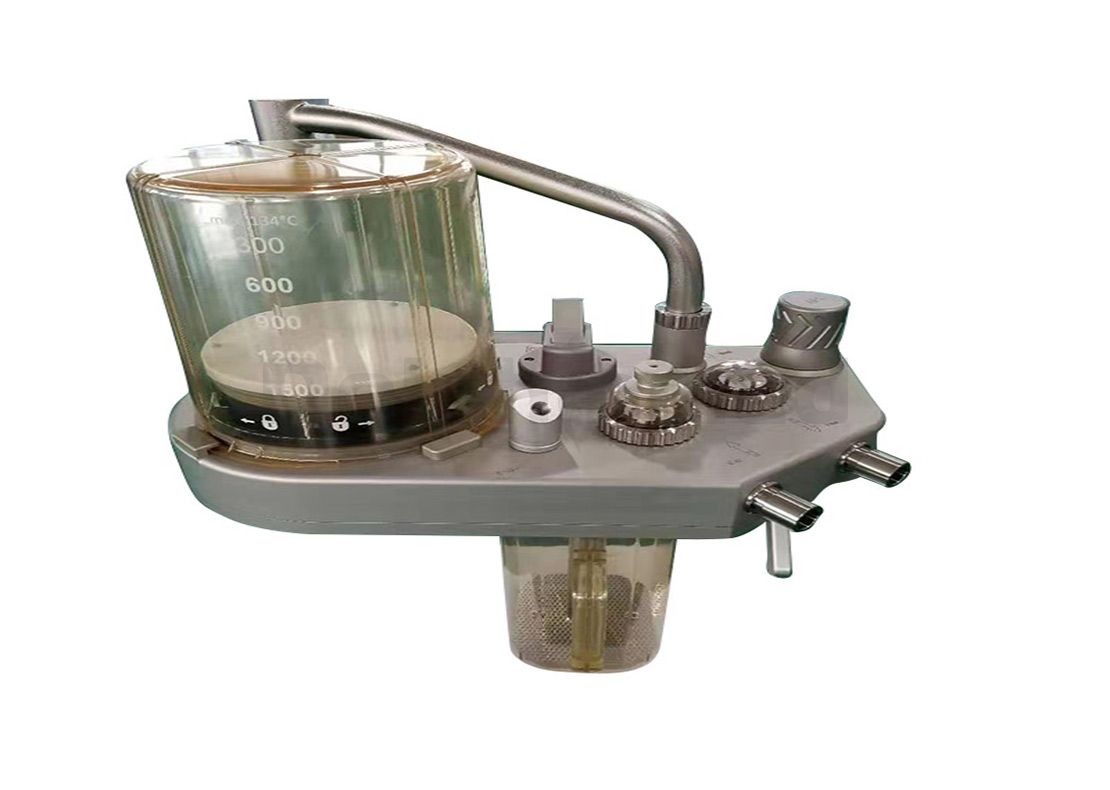

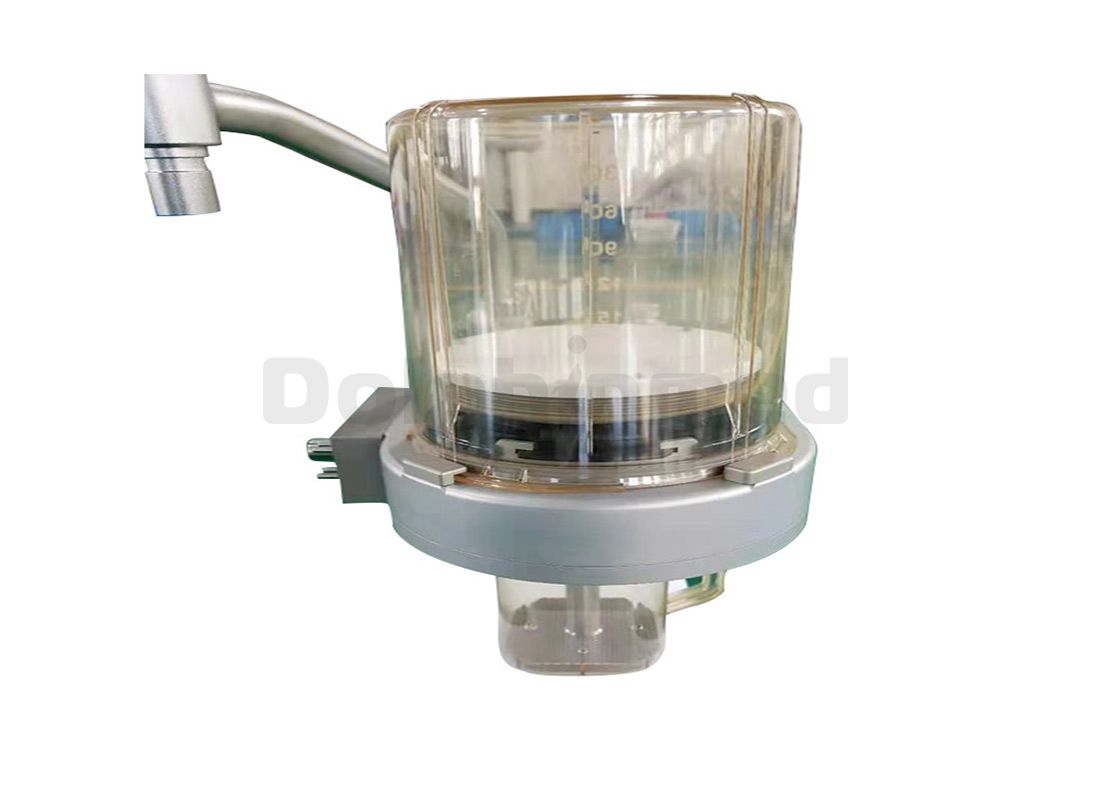

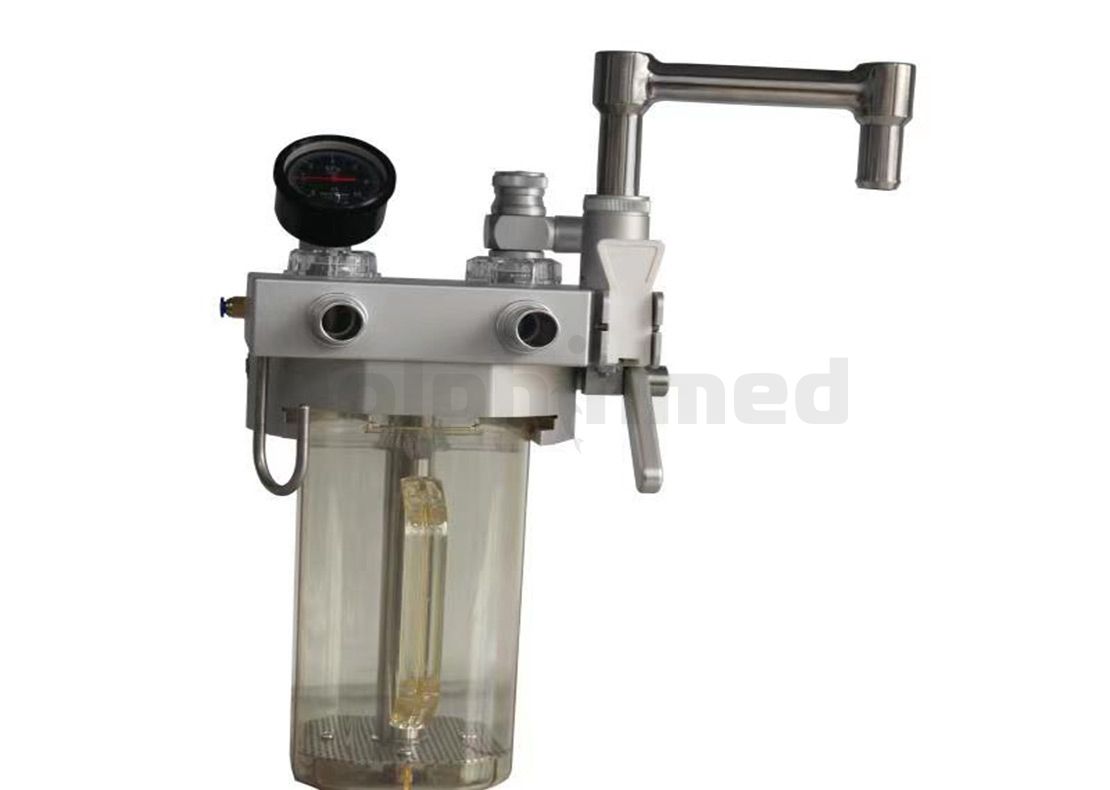

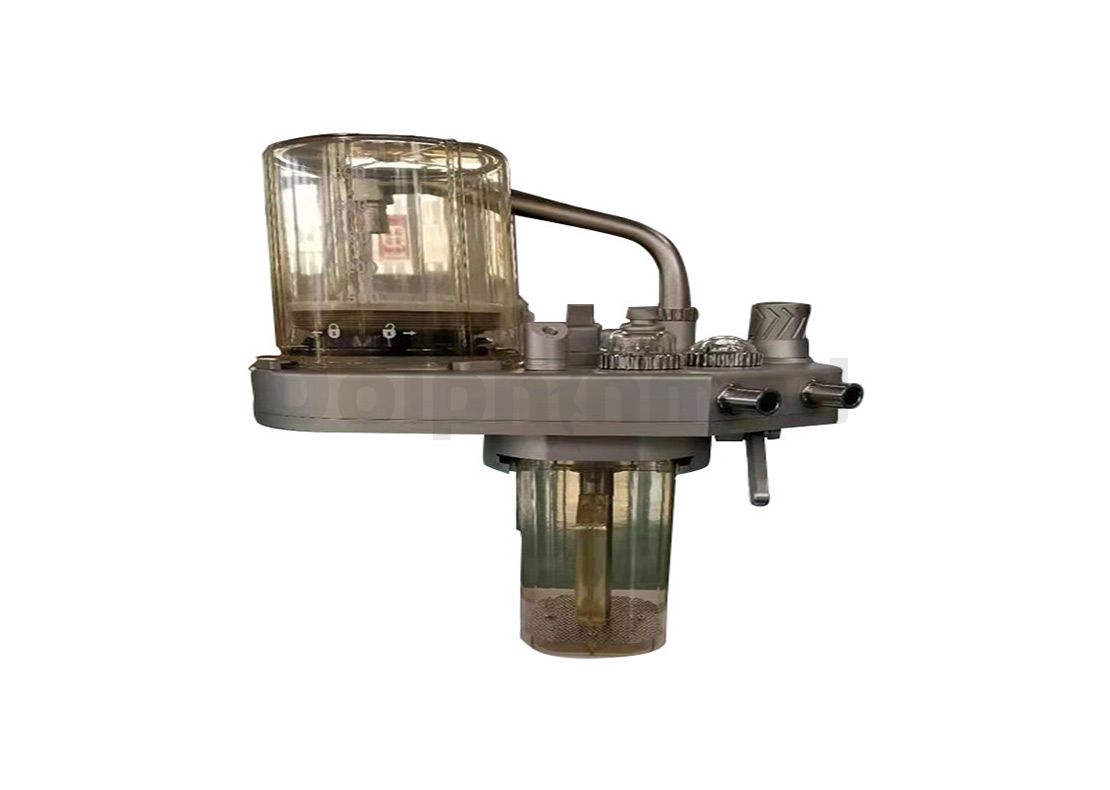

DP301A CO2 Absorber

Other name：Anesthesia machine Absorber system，anaesthesia machine CO2 breathing system

Dolphinmed new CO2 Absorber provides advanced levels of integration function with the all mental module design,especially applied onto anesthesia machine for patient breathing system.

Ø Special design for adult or pediatric&infant bellows， a bellow in upper part and a CO2 absorber for soda lime holding of a capacity of maximum 1.8L

Ø Material: 138 degree autoclavable

Ø Bag / Vent control interface provides automatic ventilation mode switching.

Ø Integrated airway flow sensors.

Ø Integrated Oxygen Monitor sensor.

Ø Ergonomic breathing bag arm.

Ø APL (adjustable pressure limiting) valv

Ø Bellow with rubber parts and acrylic 138 degree autoclavable

Ø Ascending bellows prevent air from being drawn into the breathing system in the event of leakage. Capacity up to 1500ml, suitable for adults, infants.

The CO2 absorber include Inspiration interface, Inspiration air valve，Gas circuit pressure gauge, Semi-closed safety valve, Expiration air valve  6. Manual / Mechanical control,Manual leather bag interface, Expiration interface ,Soda lime canister， Detent
Fresh gas inlet, Entrance of mechanical control, Oxygen sensor interface,Airway pressure sampling conne
