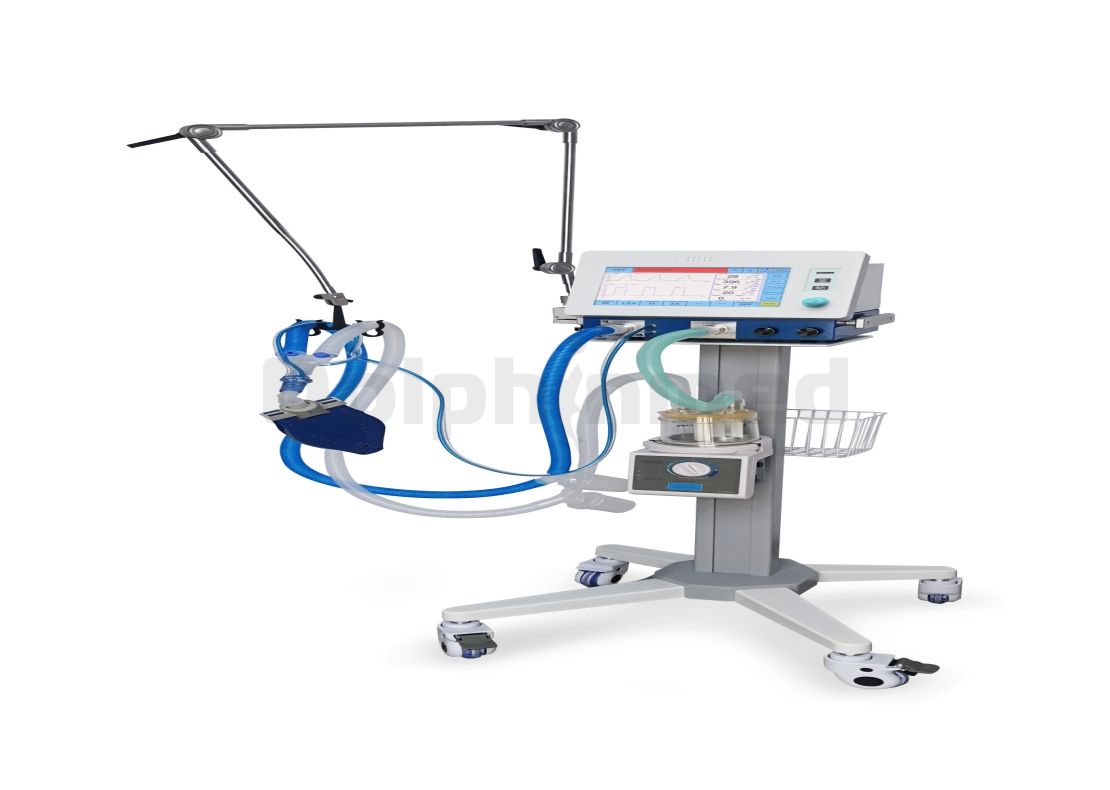

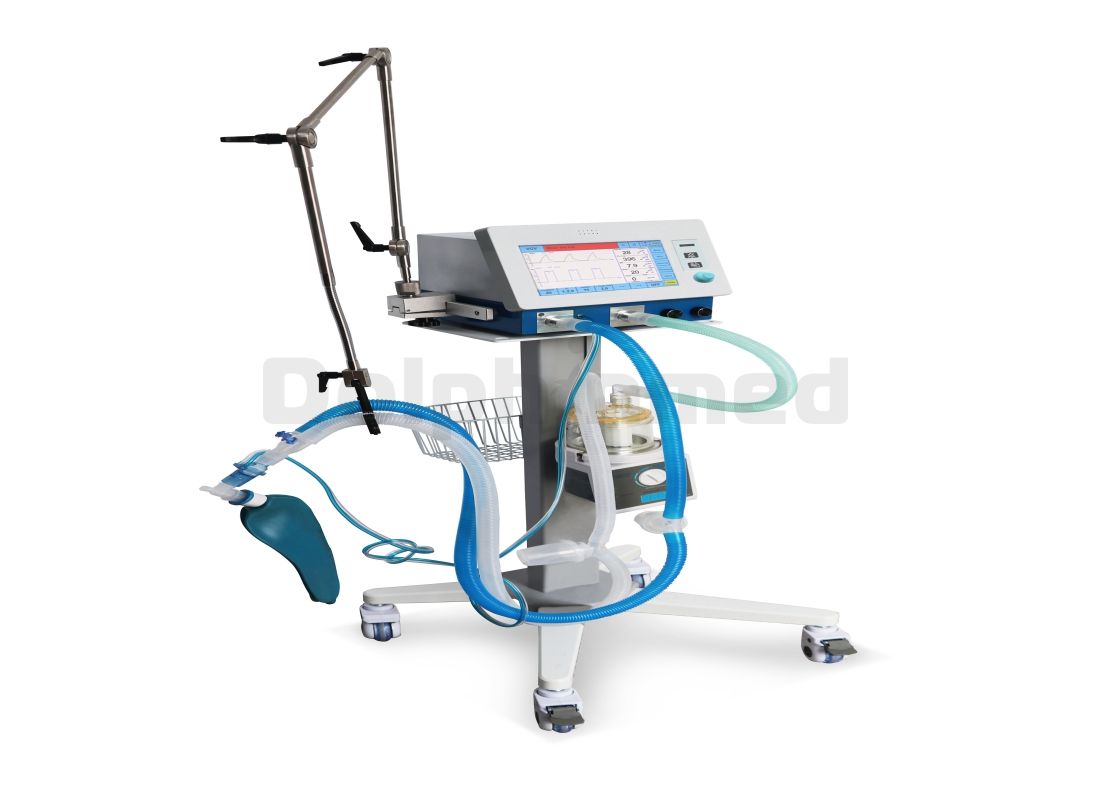

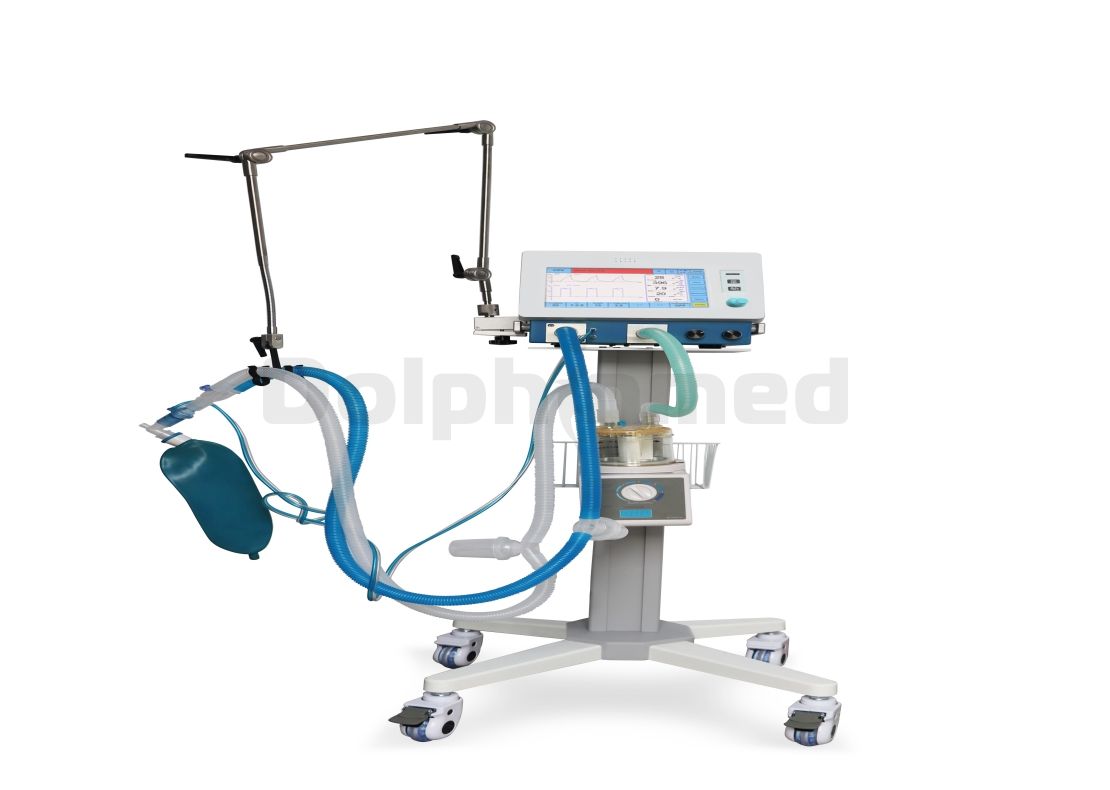

ICU VENTILTOR MODLE DOL680A

Share:

The ventilator can be used for clinical anesthesia and postoperative respiratory management in hospitals at all levels, clinical first aid and respiratory treatment, and intensive care unit (ICU) and other applications.


Products description

Feature:

Intensive care ventilator for Adult to Pediatric patients

Both invasive and noninvasive respirator feature

Hi-flow specially for Anti COVID-2019

Microcomputer controlled,pneumatically driven and electronically controlled.

Pressure, volume controlled treatment oxygen therapy machine.

Simultaneously display for three waveforms and two loops

Both Vti and Vte monitoring

100% oxygen fast system, make sure to provide pure oxygen at any time.

9inch TFT color screen display with Touch screen

Multi safety mechanism for patient safety and three level colour coded audio-Visual alarms





Breathing mode:



VCV

V-SIMV

H-Flow

PCV

PSV

P-SIMV

SONT

CPAP

Demo


Parameter

Application scope: Pediatric and adult

Driven mode: pneumatically driven and electronically controlled

Working mode: Pressure and volume

FiO2:45~100%

TV: 50~1500 ml

Frequency: 1~150 bpm

I:E:      9.1:1~1:9.9

Hold%: 0~50%

Flow trigger:0.5-20 L/min

Pressure trigger:-20-0 cmH2O

Pressure control:0-60 cmH2O

Freq_simv(bpm):2-60

P_insp(cmH2O)2-60

Pressure support:0-120 cmH2O

Electronic PEEP:0-50 cm H2O

Triggering sensitivity :-0.1~-2.0(OFF) KPa

SIGH:1.0~2.0     VT/50

Inspiration Time: 0.1~12S

Maximum inspiratory time:1.0~6.0 S

Apnea time   3~12 S

Inspiratory flow rate :5~120 L/min

Wave form:P-T, F-T, V-T

Loops:P-V, F-V

Alarms Recall:1500Events



Alarm parameters:

Peak(cmH2O) high/low

TV_Exp(ml) high/low

Freq high/low

FiO2 high/low

PEEP(cmH2O) high/lowCircle Block

High leak,

Circuit disconnection,

AC power failure,

Low battery, Battery too low

Alarm sound:0-10 grade

T-Apneas(s):3-20S


Monitoring parameters:


Ppeak, Pmean, Pplat, PEEP, MV,MV-Spont, TV_Exp,

TV_insp ,Freq, Freq_spont, FiO2,

Other Specification:

Oxygen pressure: 0.28~0.6  MPa

System noise: <65  dBA

Environment :

Temperature: 5℃~ 40℃

Relative humidity:  ≤85%(25℃时)

Atmospheric pressure:  96~106   KPa

Power:AC85~265V,47~63Hz

Power consumption:     100VA

SIZE:    32cm×30cm×25cm



Configuration:it include trolley,main unit,humidifier,gas source pipeline,power cable,support arm,

adult/pediatric breathing circuit,Simulated lung etc.
