Medical Air Compressor DC100A plus
  • Medical Air Compressor DC100A plus
  • Medical Air Compressor DC100A plus
  • Medical Air Compressor DC100A plus
  • Medical Air Compressor DC100A plus
  • Medical Air Compressor DC100A plus
  • Medical Air Compressor DC100A plus

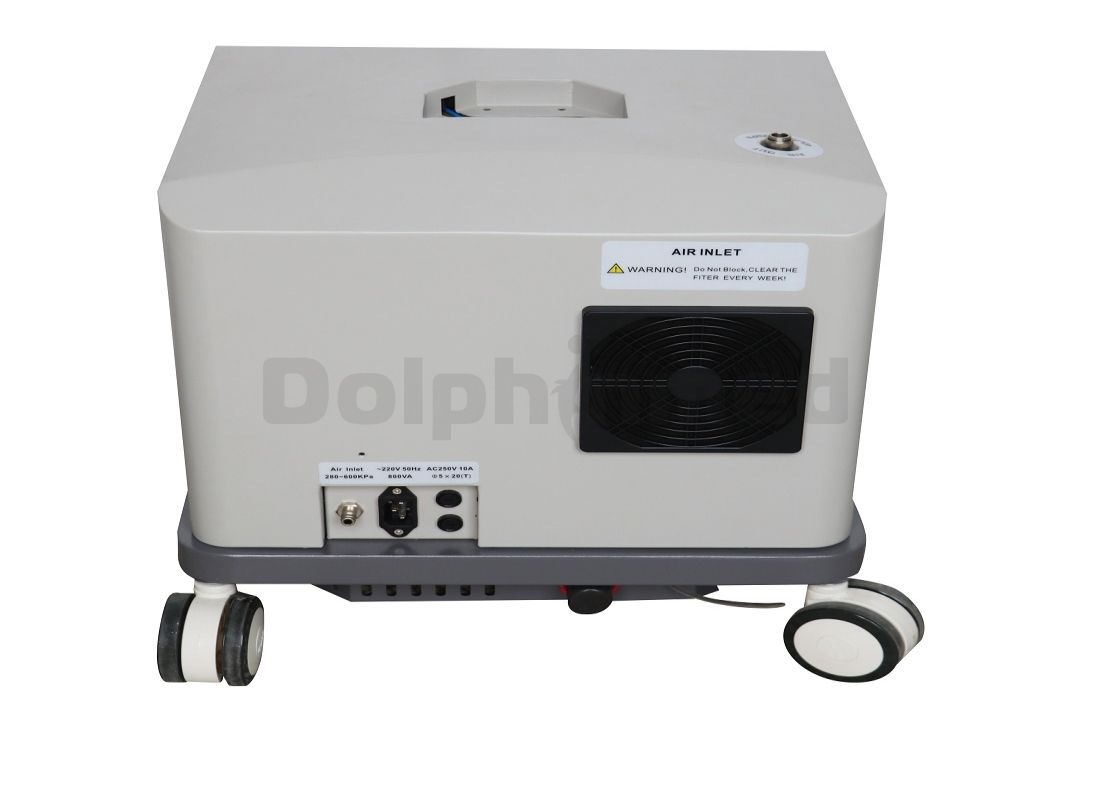

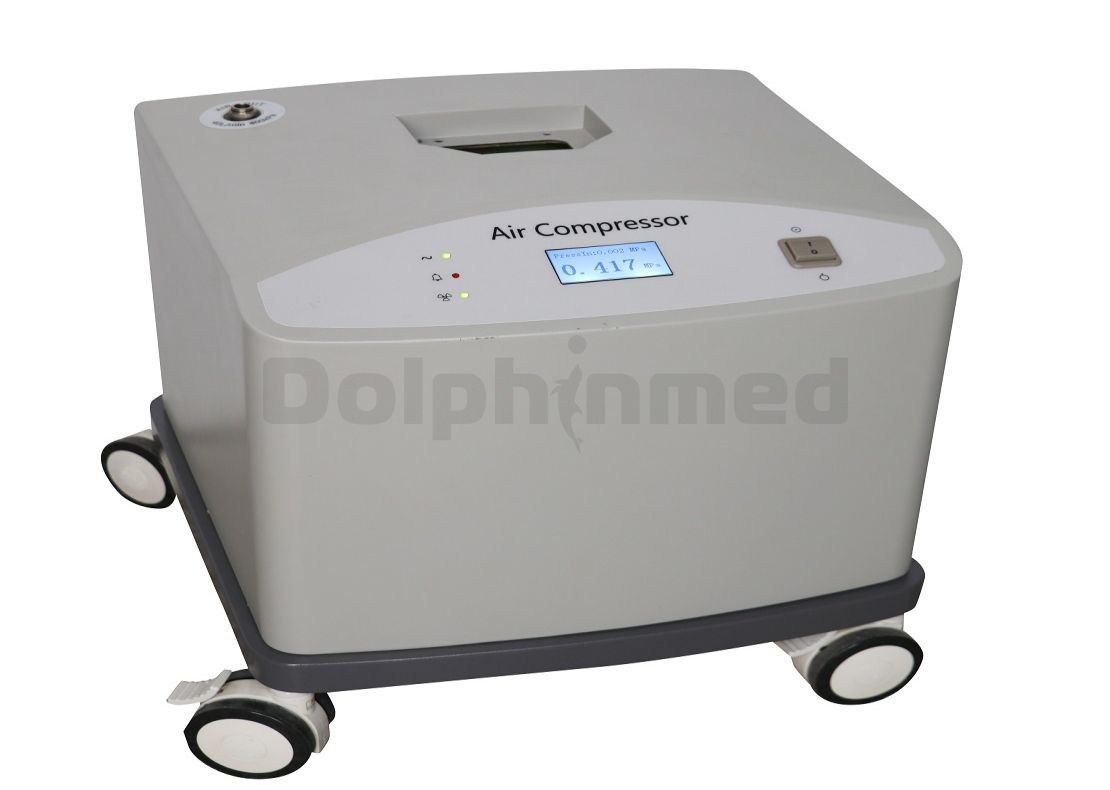

Medical Air Compressor DC100A plus

Share:

Dolphinmed with latest technlogy delivery air compressor with very stable performance,safe and reliable performance,

Could match with any brand anesthesia machien,ventialtor,veterinary anesthesia&ventialtor,etc,


Products description

Salient Feature:

Auto-start funciton when central gas sytem failure.

Oil-Free Compressor with temperature protection

Low nosise low than 51dB(A)



Dolphinmed with latest technlogy delivery air compressor with very stable performance,safe and reliable performance,

Could match with any brand anesthesia machien,ventialtor,veterinary anesthesia&ventialtor,etc,



Feature:

Compacet design and easy to transport,

With pressure adjustment knob,easy to adjut the needed pressure.

Low noise air compressor low than 51dB(A)

Build-in temerpare tranmit system,will auto close while tempeprature decrease to the certain value

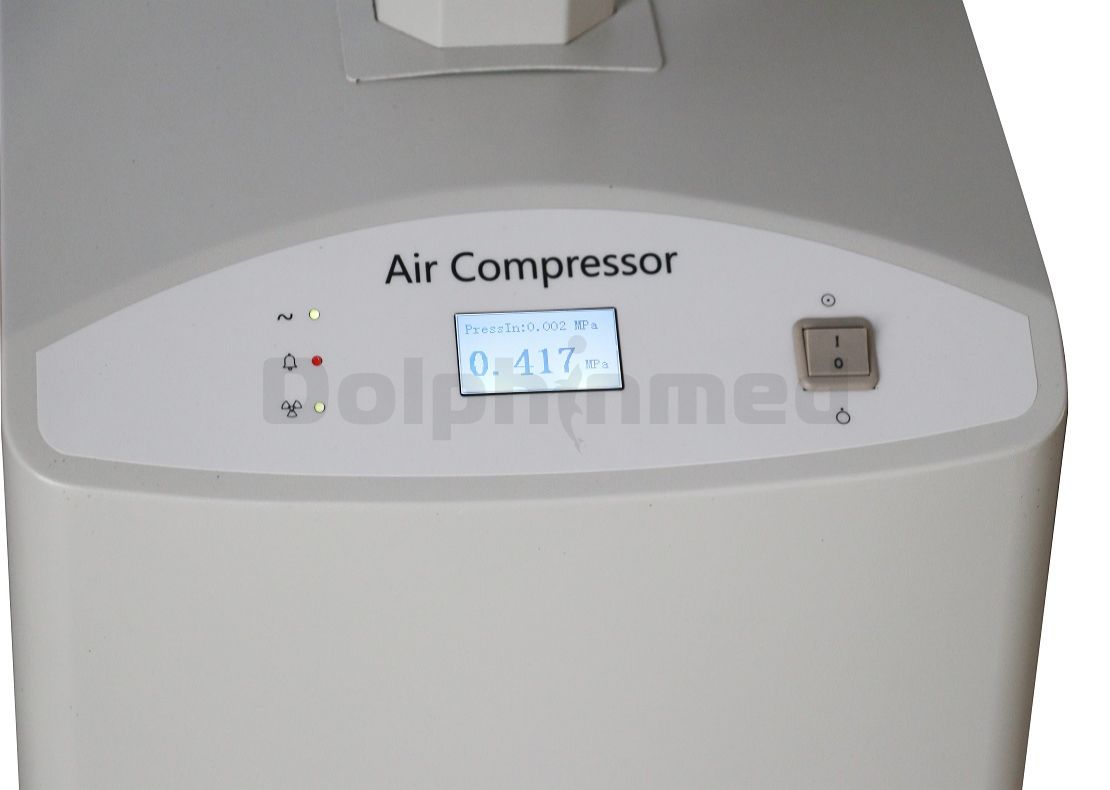

With LCD screen to display output pressure,accoulated working hours.

Assembly with clean contral module,supply cleanand safe air to the patients

Effective sound-asborber material

Oil-free compressor wiht temperation protection

Match with variours ventilator of international stanadrd in the world



Specification:



Output gas flow≥40L/minRemark
Output gas pressure0.3~0.4MpaAdjustable
Output gas filter accuracy0.03μm
Air compressor pump1sets
Efficient rate for particle filtration99%
Dew point of output gas:0~10℃Dried output gas
Noise<51 dB(A)
MonitorWorking hours,working pressure,
Back up connectorWhen central gas fail,compressor start auto
Power supply220V±15% ,50HZ or 110V±15%,60HZ
Power<800W
WarningOutput pressure low than 0.23Mpa
Working EnvironmentTemperature 0~40°CHumidity<90RH
Dimension:501mm (L) ×554mm (W) ×550mm (H)
 Weight: 38 kg
